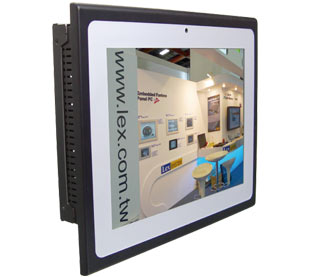

12.1 " Slim Fanless Panel PC |
| Information Kiosk, POS, Mobile solution, Automation control |
View
  |
| |
| Feature |
| Intel Atom / VIA solution, Fanless, Touch screen, Water Proof, Open-frame design |
| Fanless Panel PC |
Case Dimension |
56.6 H x 288.3 W x 243 D mm |
Front Panel Dimension |
12 H x 320.3 W x 275 D mm |
Material |
Plastics front frame + Aluminum |
|
7.2Kgs |
|
3.5" HDD |
|
0 ~ 45 °C ( 2.5" HDD ) / 0 ~ 50 °C ( CF Card ) |
|
5 ~ 90% @ 39 °C, non-condensing |
|
| System Information (Please refer to M/B specification) |
Main board |
3V700C-1R15C |
|
Max Memory |
DDRII SODIMM 1GB |
on board DDRII SODIMM 1GB |
CPU |
VIA C7 1.5GHz |
Intel Atom N270 1.6Ghz |
COM port |
3 |
4 |
USB |
2 |
LCD Panel |
AUO |
Resolution |
SVGA 800x600 |
Brightness ( cd/m2 ) |
450 |
Contrast Ratio |
700:1 |
Number of Colors |
262144 |
Touch Screen |
AMT 8 wires / Resistance type |
Mounting Spec. |
VESA 75/100 |
Panel frame water proof |
IP65 |
Webcam (Option) |
2.0Mega pixel - auto focus |
Accessory (Option) |
Wall Mount Kit / Stand |
|
| Ordering Information |
| Part Nr |
Product Code |
Res. |
MB Type |
CPU on board |
Mem. Support |
USB |
Serial |
LAN GbE |
Storage Support |
Availabilities |
| P23-BTK200 |
ST22253 |
XGA 1024 x 768 |
2I385CW |
E3845 1.91GHz |
Integrated with 4GB |
4 |
4 |
2 |
mSATA / 2.5" HDD |
standard |
| P25-6CB230 |
ST22A31 |
1024x768 |
CI770C-6CXX |
988 G2 3rd GEN |
SODIMM up to 16GB |
4 |
4 |
2 |
Cfast / 2.5" HDD / 3.5" HDD |
last stock |
|
|
|
|
|
|
Optional Acc.:
- Wireless 802.11n, mini-card, with Antenna
- Wall Mount kit (for VESA, back side of system)
- Stand for Panel PC, by VESA
- High Brightness 1500 nits + Aluminum Frame (15"+3I525C only)
|
|
|
|
|
|
